Total Chaos | SKU:
86002T-16

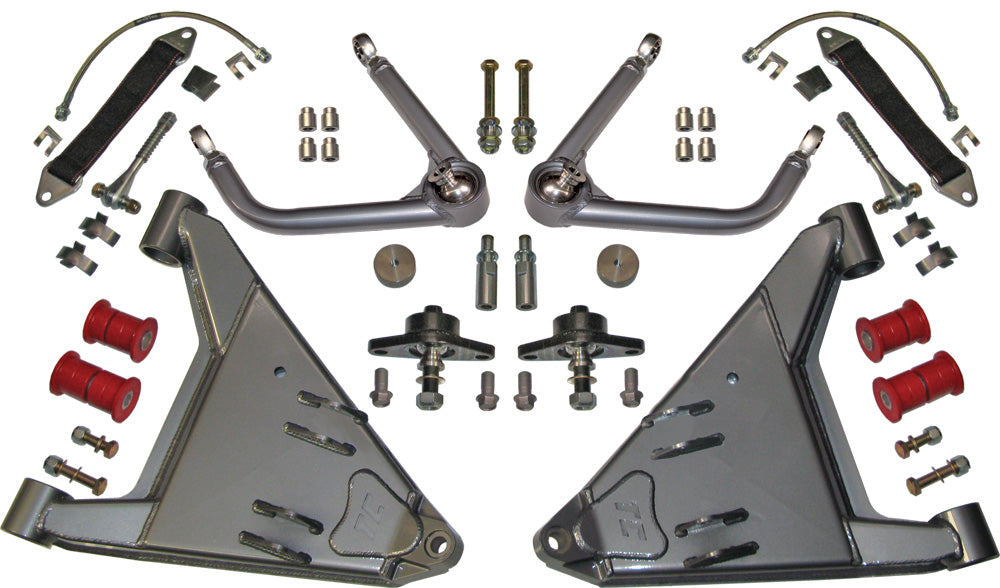

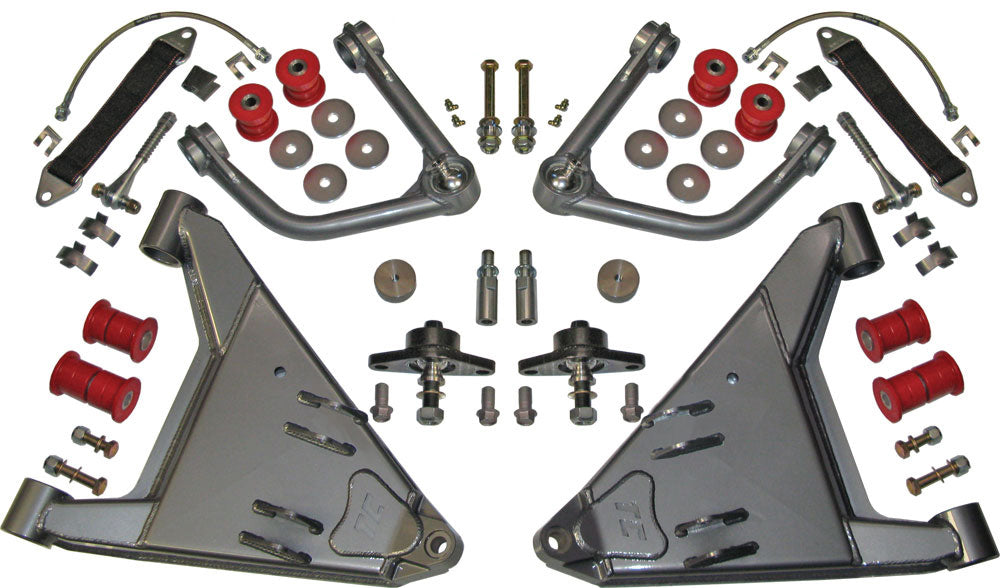

Total Chaos LONG TRAVEL +2" | Toyota Tacoma 2016+
$3,183.53
Unit price
/
Unavailable
Total Chaos LONG TRAVEL +2" | Toyota Tacoma 2016+ - URETHANE PIVOT UPPER CONTROL ARMS is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Total Chaos LONG TRAVEL +2" | Toyota Tacoma 2016+
From
$3,183.53
Unit price
/
Unavailable
Description
Description
- Race system legal for several different racing sanctions that have limited track width rules.
- 2" extended 4130 chromoly tubular upper arms bolt to factory control arm mounting locations.
- Upper and lower ball joints are replaced with 1" uniballs for maximum wheel travel and component strength.
- TOTAL CHAOS includes 1" I.D. uniballs that feature a heat treated stainless steel ball & heat treated stainless steel race for maximum corrosion resistance and component longevity. These uniball's also features a military grade PTFE woven fabric liner that helps prevent noise.
- Boxed and internally gusseted 2" extended lower control arms bolt to factory control arm mounting locations and are pre tabbed for dual shock capability.
- 2.5" long travel specific coil over shocks bolt into the factory coil bucket location. Extended travel shocks are too short and will not work.
| BRAND | COILOVER PART# | BYPASS PART# |
| KING | TC5119-03 | TC1119-34 |
- A secondary external bypass shock can be installed to increase dampening and tune-ability.
- Bolt on lower uniball adapters are CNC machined from billet steel and include shortened factory hardware for ease of installation.
- Lower control arm is compatible with Light Racing Jounce dome pad if vehicle is already equipped with this model bump stop. 1 1/2" extension for Jounce shock is sold separately.
- Spring rate options offer the ability to customize your ride for your specific application allowing you to custom tune the vehicle for specific terrain or desired performance.
- Adjustable limit strap clevis' are included so that you can properly limit the suspensions droop wheel travel and make necessary adjustments during the life of the limit strap.
- Stainless steel DOT braided brake lines, TC custom 17-4 stainless hi-misalignment spacers and all grade 8 mounting hardware is included.
- TC 4340 custom extended axles reuse factory inner and outer CV's to retain 4wd.
(axles are sold separately and not included with the kit) - 2 stage powder coat process includes a durable clear coat to provide a long lasting finish.
- Hand crafted in the U.S.A.
- Fiberglass fenders not required on FJ Cruisers. 4Runners are limited to 275/70R17 tires unless fiberglass is installed. Fiberglass fenders or extreme fender modifications/cutting required on Tacoma.
- TC includes 3/4" chromoly lined heim joints for the pivots.
- 4130 chromoly tubing heim upper control arms are fully adjustable to allow maximum tuning of caster and camber.
- Zero bushing deflection.
