Metal Tech Pegasus Rear Swing Out Bumper Stage 2 | Lexus GX470 2003-2009

Metal-Tech 4x4 Lexus GX470 Pegasus Rear Swing Out Bumper Stage 2

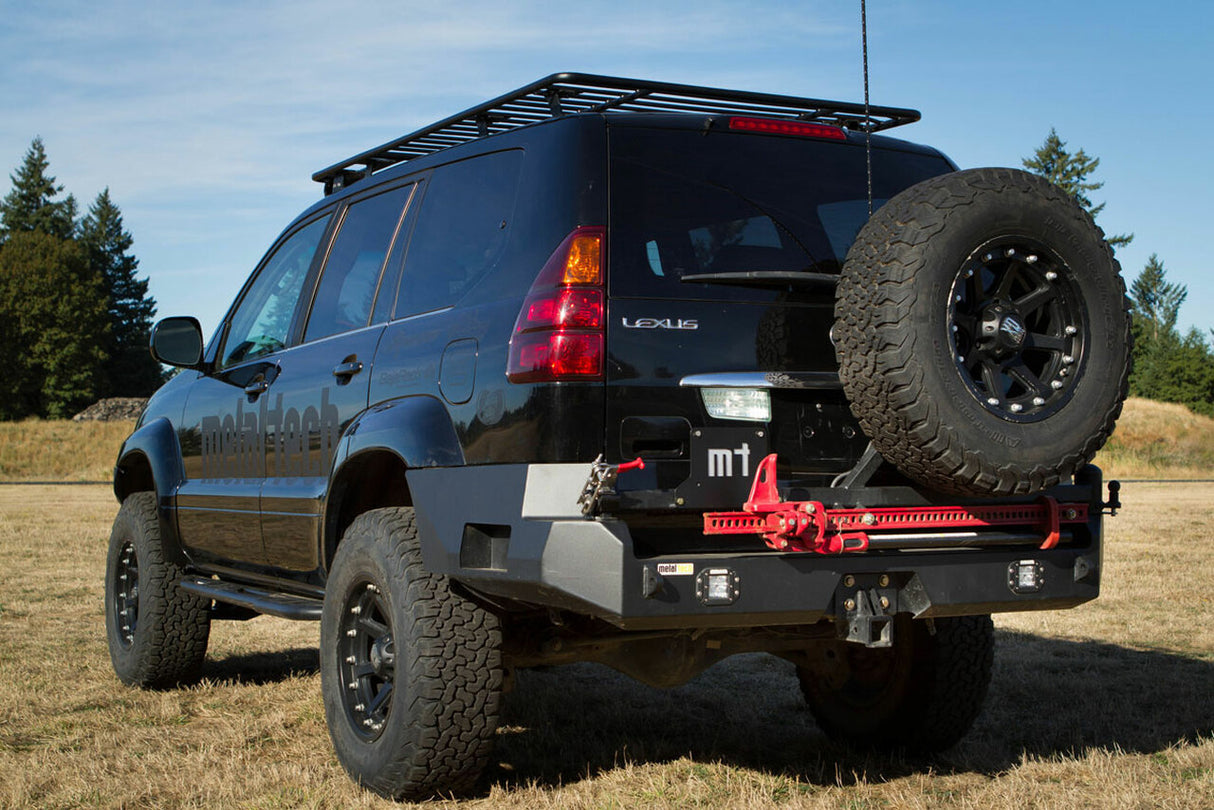

Pegasus is a one piece no cut rear bumper with integrated 3/4" pull points and built in rear facing pockets for 20w flange mount LED backup lights. It uses MT4x4's custom machined 2000lbs Motion X Pivot System with two tapered radial bearings and grease seal that moves the one piece swing out arm with ease.

We use state of the art design and engineering tools like 3D Scanning and Finite Element Analysis (FEA) to develop all of our bumpers. We analyze the products real-world physical behavior by virtually testing the CAD models against linear, non-linear, and dynamic loading, allowing us to raise product quality and product durability ensuring a long service life.

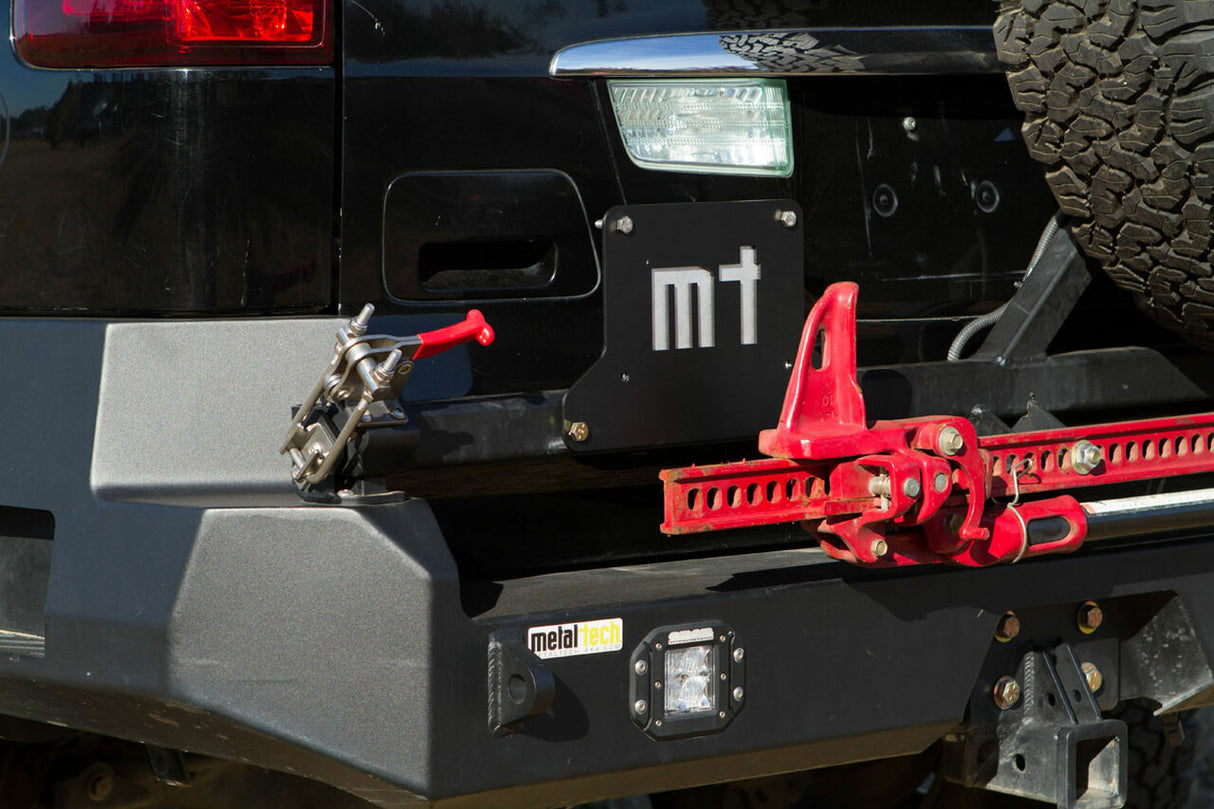

All Lexus GX470 rear swing out bumpers include a stainless steel 2000lbs rated locking latch bolted on with machined High-density polyethylene (HDPE) replaceable wear blocks for the beams contact points into the locking cradle. The swing out beam features an adjustable offset spare tire mount holding up to a 35" spare without blocking the tail lights, a UHF/CB antenna mounting point, and a built in horizontal Hi-Lift Jack mount as standard.

This Lexus GX470 rear swing out bumper uses an integrated 120lbs gas strut to assist in opening the swing out beam loaded with auto locking open and closed positions so the swing arm can be opened safely when the vehicle is off axis.

On the side of the Pegasus we built in side steps pockets to provide quick access to your roof. Each step pocket features optional mounting points for marine 12v accessories ports and an LED step light that will illuminate the step pocket, both available as an optional accessory.

Optional Utility Rack and 2 Locking Fuel/Water Can Holders which are made of single weld, laser cut, 5052 aluminum to be strong and light weight are available.

We offer two optional bolt on receiver hitches or run w/out, (1) shown under frame mount full GVW towing capacity, (2) high tuck above the frame with light duty use like off road trailer etc.

If your GX470 has a back up camera then you will need our optional Backup Camera Mount Relocation Kit to relocate the factory camera to the spare tire carrier.

The Lexus GX470 rear swing out bumper is designed so all moving parts are fully serviceable, rebuildable, and replaceable, which ensures a long service life for the product.

Features:

• Bumper shell
• Swing out arm w/ tire carrier and license plate mount
• Hi-Lift Jack mount
• Antenna mount
• Rear pockets for optional LED back up lights
• 2 OPOR Flange Mount back up LED Lights
• Side Step Pockets for optional power ports and LED step lights
• Stainless Steel latch with HDPE landing pads
• All mounting hardware
