Dobinsons Spring & Suspension | SKU:
DSSKITMRA79
Dobinsons 1.5" to 3.0" MRR 3-Way Adjustable Lift Kit for Toyota Hilux Vigo Dual Cab 3.0L TD / 4.0L V6 with Quick Ride Rear - DSSKITMRA79 - DSSKITMRA79
$2,865.00
Unit price
/
Unavailable
Dobinsons 1.5" to 3.0" MRR 3-Way Adjustable Lift Kit for Toyota Hilux Vigo Dual Cab 3.0L TD / 4.0L V6 with Quick Ride Rear - DSSKITMRA79 - DSSKITMRA79 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
- Front Coil Spring Specs
- C59-300 - 40mm (1.6") lift, Stock Weight
- C59-302 - 50mm (2.0") lift, Stock Weight
- C59-314 - 50mm (2.0") lift, 110-220lb Load / 75mm (3.0") lift, stock weight
- C59-352 - 75mm (3.0") lift, 110-220lb Load
- 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
- 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
- 20 Stage Low Speed Compression - For creepy crawling and cornering
- 15 Stage Rebound - Control your coils, prevent bucking
- 50mm CNC Machined High Flow Billet Aluminium Race Piston
- 3mm Thick Heavy Duty DOM Seamless 56mm O.D. shock Body Precision Honed to +/- 0.04mm
- Upgraded 3 Stage FKM-HNBR Sealing System
- TSUGAMITM CNC machined components for precise tolerances
- ParkerTM Braided High Pressure Hoses
- 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
- T6 6061 Height Adjustable Spring Seat
- Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance
- 60mm Full 6063 aluminum remote reservoir
- Lightweight CNC Machined Low Friction floating piston
- High Quality O.E.M. Grade Natural Rubber Bushings
- Single Piece Lower Leg
- EDP Surface Protection
- Direct Bolt-On Design
- CNC TIG Precision Welded Body End Mounts
- Fully Rebuildable Design

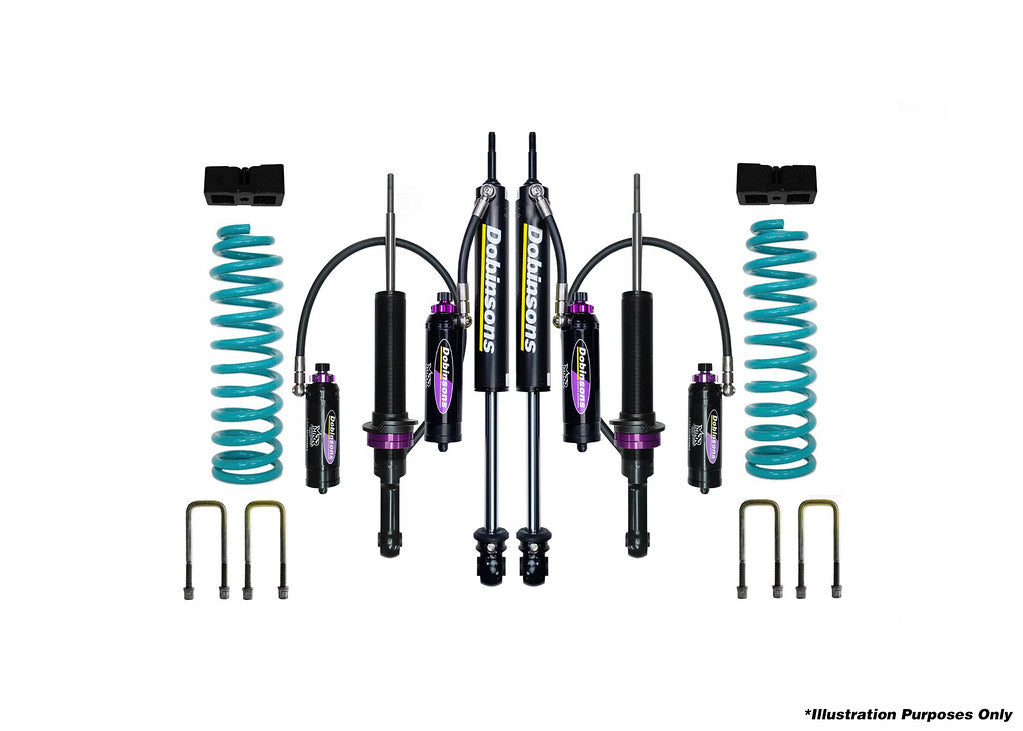

- Includes 2 Front Struts, 2 Rear Shocks, 2 Front Coil Springs (a pair), Rear Spacer Blocks and U-Bolts
- Rear Quickride lift blocks and U bolts lift 1.25 or 2 inches only no extra weight.
- If you have a 2.5 diesel or 2.7L gas engine consult dobinsons for the propper lift.
Strut Assembly Video
Front Strut Assembly Instructions
