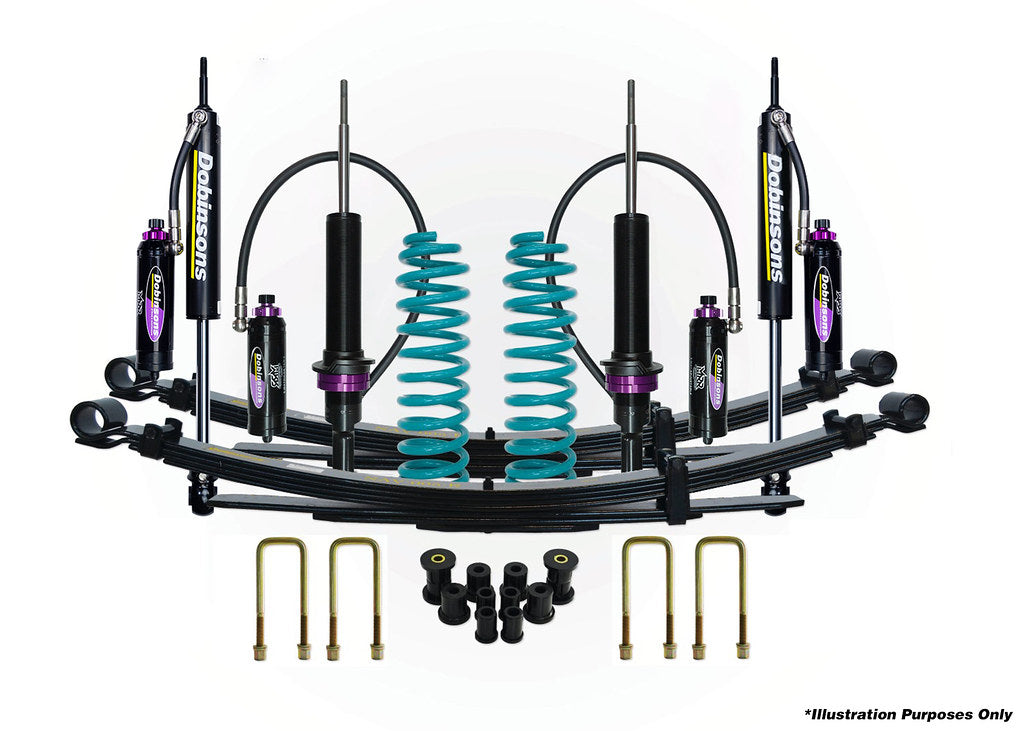

Dobinsons 1.5" to 3.0" MRR 3-way Adjustable Suspension Kit for 2005 to 2022 Tacoma 4x4 Double Cabs - DSSKITMRA05 - DSSKITMRA05

• Front Coil Spring Specs
• C59-302 - (40mm-1.6") Stock front end
• C59-314 - (50mm-2.0") Stock front end
• C59-352 - (50mm-2.0") Heavy load front end (110-240lbs) / (60mm-2.4") Stock front end
• C59-354 - (60mm-2.4") Heavy load front end (110-240lbs) / (70mm-2.75") Stock front end
• C59-318 - (75mm-3.0") Heavy load front end (110-240lbs)

• 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
• 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
• 20 Stage Low Speed Compression - For creepy crawling and cornering
• 15 Stage Rebound - Control your coils, prevent bucking
• 50mm CNC Machined High Flow Billet Aluminium Race Piston
• 3mm Thick Heavy Duty DOM Seamless 56mm O.D. shock Body Precision Honed to +/- 0.04mm
• Upgraded 3 Stage FKM-HNBR Sealing System
• TSUGAMITM CNC machined components for precise tolerances
• ParkerTM Braided High Pressure Hoses
• 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
• T6 6061 Height Adjustable Spring Seat
• Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance
• 60mm Full 6063 aluminum remote reservoir
• Lightweight CNC Machined Low Friction floating piston
• High Quality O.E.M. Grade Natural Rubber Bushings
• Single Piece Lower Leg
• EDP Surface Protection
• Direct Bolt-On Design
• CNC TIG Precision Welded Body End Mounts
• Fully Rebuildable Design
• If pairing with a U-bolt Flip Kit plate, request UB59-453-1K in the order notes.
• MRA59-A941 shocks require 24" brake lines and 3" bump stop extensions or a bump stop that is at least 3" longer than OEM
