Dobinsons Spring & Suspension | SKU:
DSSKITMRA001000

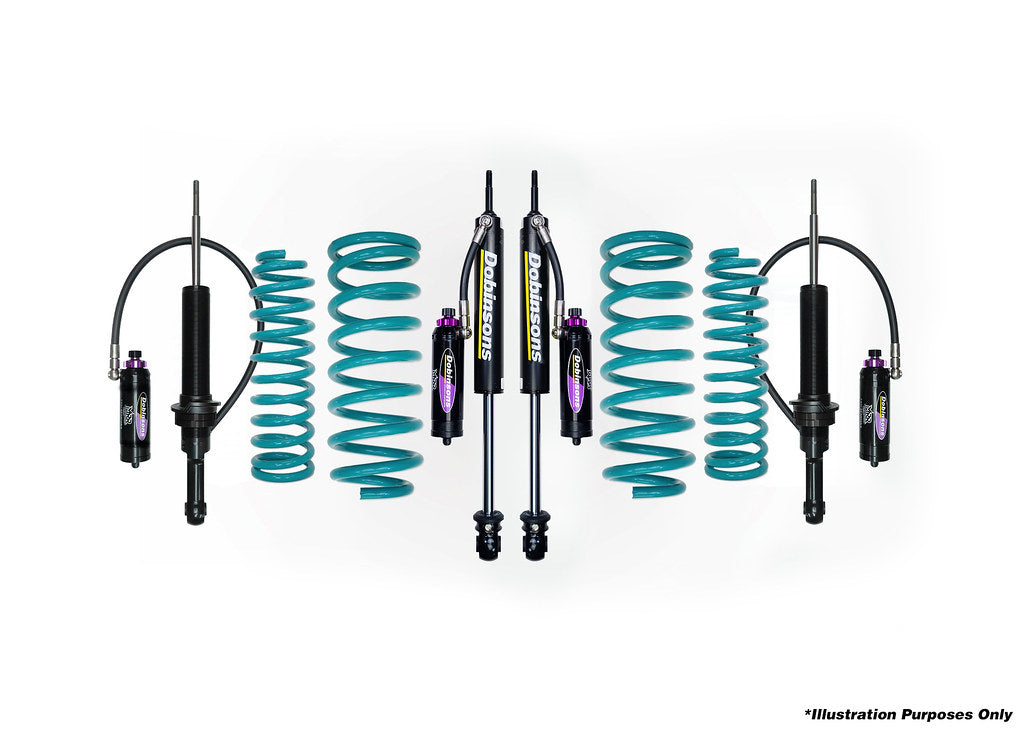

Dobinsons 1.75" MRR 3-Way Adjustable Suspension lift kit for 2013 and Up Isuzu MU-X - DSSKITMRA001000 - DSSKITMRA001000
$2,970.00
Unit price
/
Unavailable
Dobinsons 1.75" MRR 3-Way Adjustable Suspension lift kit for 2013 and Up Isuzu MU-X - DSSKITMRA001000 - DSSKITMRA001000 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
- Front Coil Spring Specs:
- C59-134 (20mm - 0.75") Stock Load
- C59-296 (45mm - 1.75") Stock Load
- C59-134 (45mm - 1.75") 110-220lb Load
- Rear Coil Spring Specs
- C21-355 (45mm - 1.75") Stock Load
- 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
- 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
- 20 Stage Low Speed Compression - For creepy crawling and cornering
- 15 Stage Rebound - Control your coils, prevent bucking
- 50mm CNC Machined High Flow Billet Aluminium Race Piston
- 3mm Thick Heavy Duty DOM Seamless 56mm O.D. shock Body Precision Honed to +/- 0.04mm
- Upgraded 3 Stage FKM-HNBR Sealing System
- TSUGAMITM CNC machined components for precise tolerances
- ParkerTM Braided High Pressure Hoses
- 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
- T6 6061 Height Adjustable Spring Seat
- Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance
- 60mm Full 6063 aluminum remote reservoir
- Lightweight CNC Machined Low Friction floating piston
- High Quality O.E.M. Grade Natural Rubber Bushings
- Single Piece Lower Leg
- EDP Surface Protection
- Direct Bolt-On Design
- CNC TIG Precision Welded Body End Mounts
- Fully Rebuildable Design
- Dobinsons offer this complete suspension system for the 2013-On Isuzu MU-X designed to give a great ride front and rear, for stock vehicles looking for lift, with standard load in the rear.
