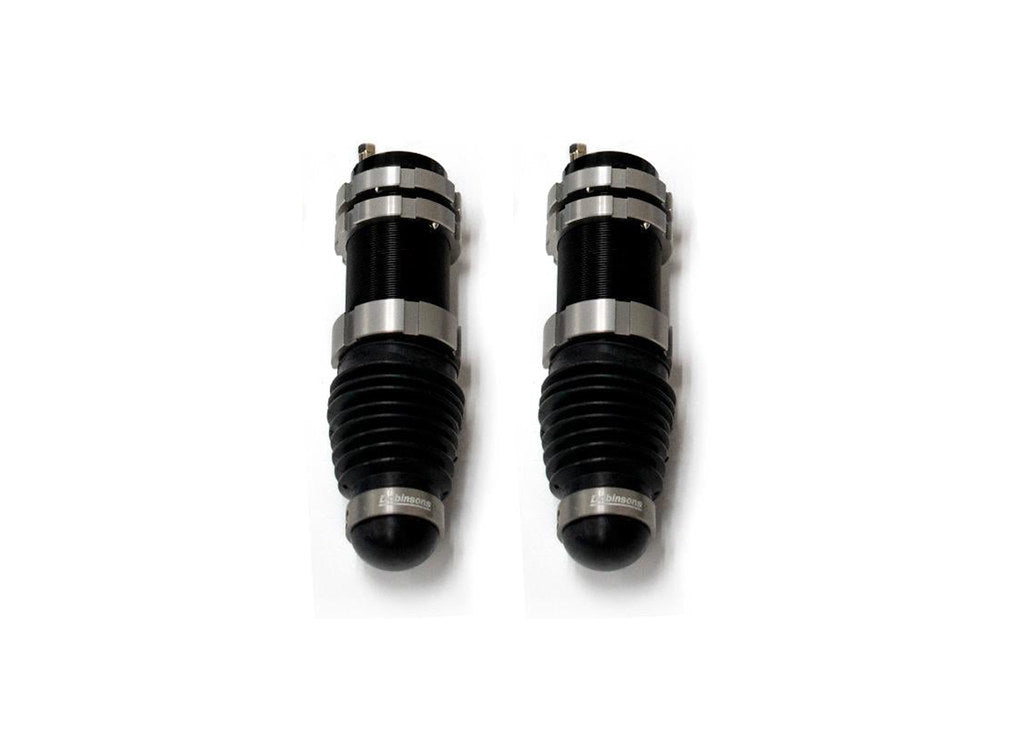

DOBINSONS ADJUSTABLE HYDRAULIC BUMP STOP 2.2" - HBS56-006
DOBINSONS ADJUSTABLE HYDRAULIC BUMP STOP 2.2" - HBS56-006 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
DOBINSONS ADJUSTABLE HYDRAULIC BUMP STOP 2.2" - HBS56-006
Description
Description
| Part Number | Stroke | Thread Length | Extended Length | Compressed Length |
| HBS56-009 | 46mm - 1.8" | 105mm - 4" | 188mm - 7.4" | 142mm - 5.6" |
| HBS56-006 | 50mm - 2" | 125mm - 5" | 238mm - 9.4" | 188mm - 7.4" |
| HBS56-001 | 50mm - 2" | 145mm - 5.7 | 273mm - 10.75" | 223mm - 8.75 |
- CNC Machined 50mm Billet Aluminum Piston
- EDP Coated 3mm Thick 56mm Steel Body
- Threaded Body For Height Adjustment
- Supplied with both Interchangeable Super Quiet Rubber Rod End & Hard Nylon
- 30mm Micro Polished Hard Chrome Shaft
- Slow Rebound Valving To Prevent Bucking
- Removable Dust Cover Boot For Stealth Appearance
- Fully Rebuildable & Tunable
- O-Ring Travel Indicator
- Heavy Duty Extreme-Race style Triple Seal Design
- Nitrogen Gas Charged & Tunable (100 to 300 PSI)
- Extra Short Dead Lengths For Compact Fitment
Fitting guide
Whenever adding bigger tires, or doing a full suspension kit on an older vehicle, the original bump stops may be damaged, missing, or just not suitable. These Dobinsons adjustable height hydroaulic bump stops are the answer, allowing you to set the bump stop clearance height to the axle with the threaded body.
